Overview: Rare OEM custom Stagger NECK Tex-Mex Pickup. They were released on some US HSS Strats in the Mid 2000's. This is an original New Old Stock Never Installed pickup.
Ship with a WHITE cover by default, please MESSAGE us after purchase if you want it with a BLACK cover (no extra charge for color choice)

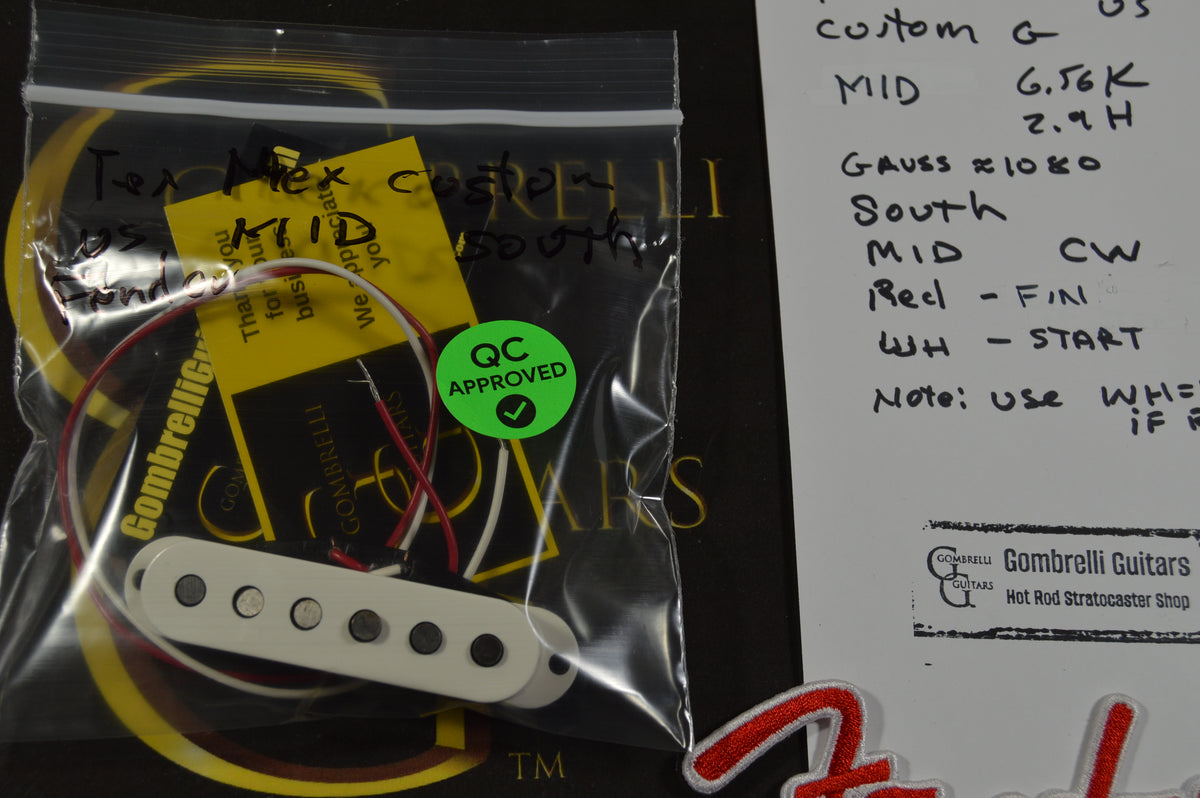

Condition: New Old Stock (packaging by GG USA)
Wires: Full Length
Measurements: 6.6K
Position: MIDDLE
SPECIAL: Custom Stagger (G is tamed down)
Pole Pieces: Alnico 5
Polarity: SOUTH
Screws and Spacers: INCLUDED, Supplied by GG USA (OEM doesn't come with them)

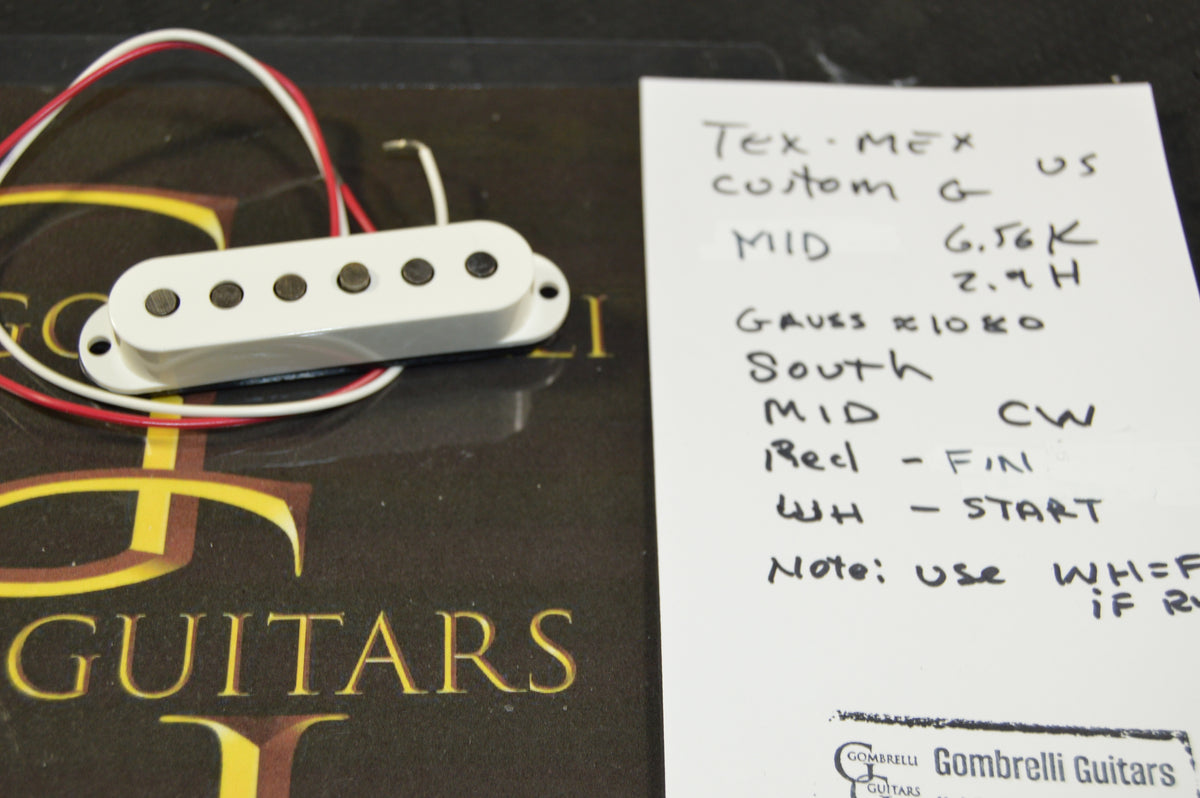

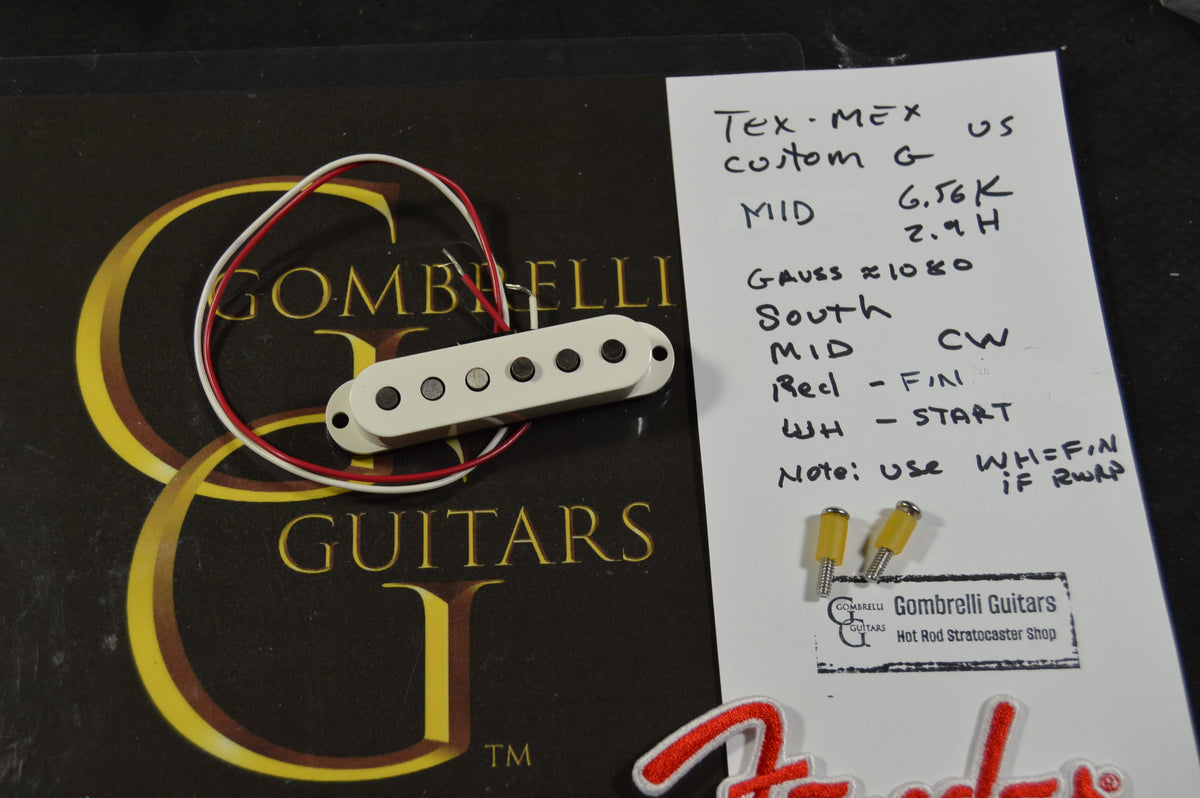

The wiring diagram is in one of the photos if you want to print it out
Currently we are an exclusive source of these OEM unusual US Tex-Mex custom-staggered pickups (see 2003-2007 American Stratocaster HSS)
SKU's: 006326100 and 0063013000 (depends on the original cover color)
INCLUDES INSTALLATION SUPPORT
IMPORTANT: This is the same same polarity as 2020's US Tex-Mex but the is flipped
MIDDLE: RED (Start/Gnd) and WHITE as the (Hot/Finish)
NK/BR: BLACK (Strat/GND) and WHITE as (Hot/Finish)
Note that newer MIM Tex-Mex uses the standard Black Ground/Start but the same polarity
