"AVENGER"

NITRO Series V1™

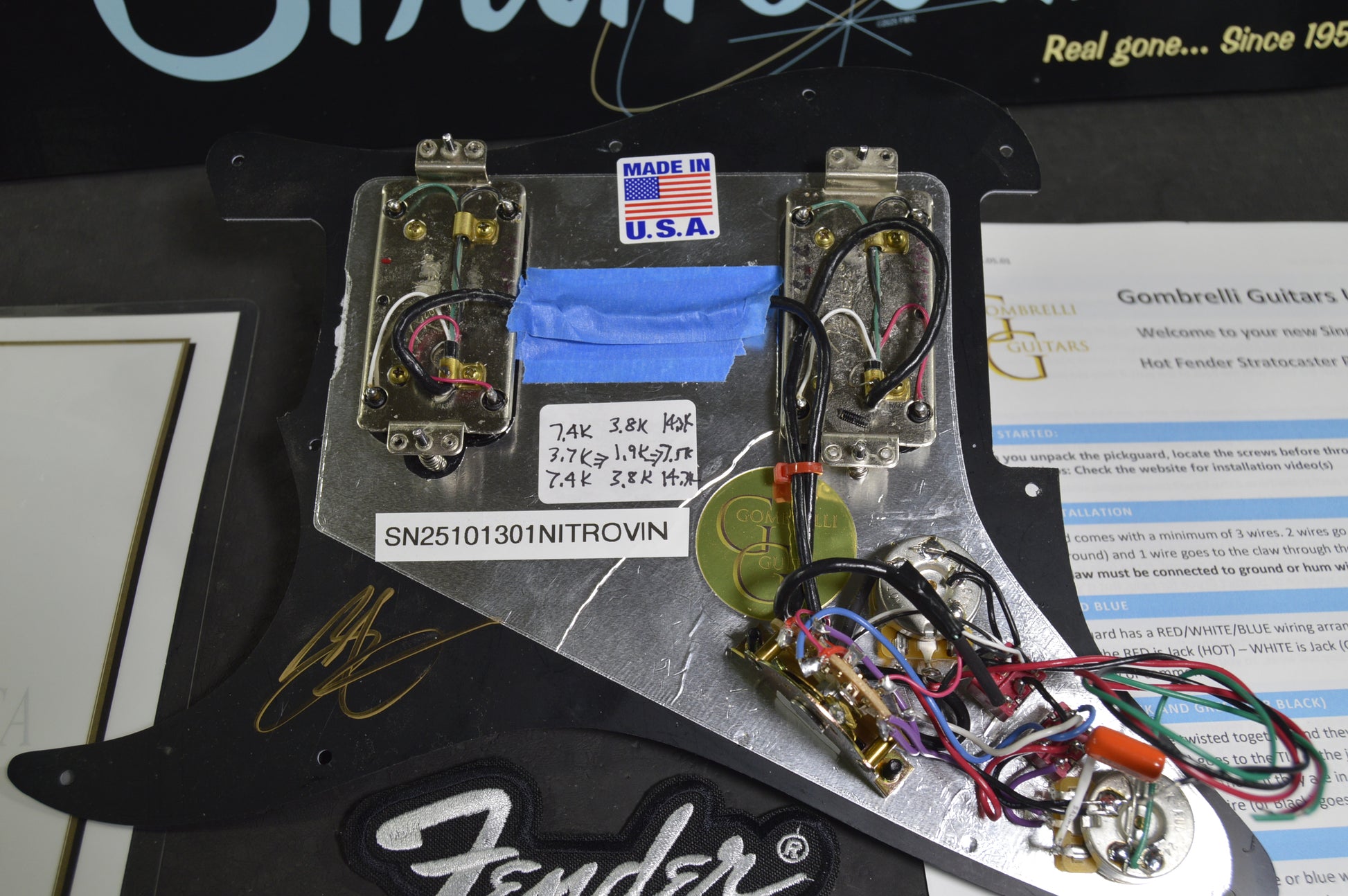

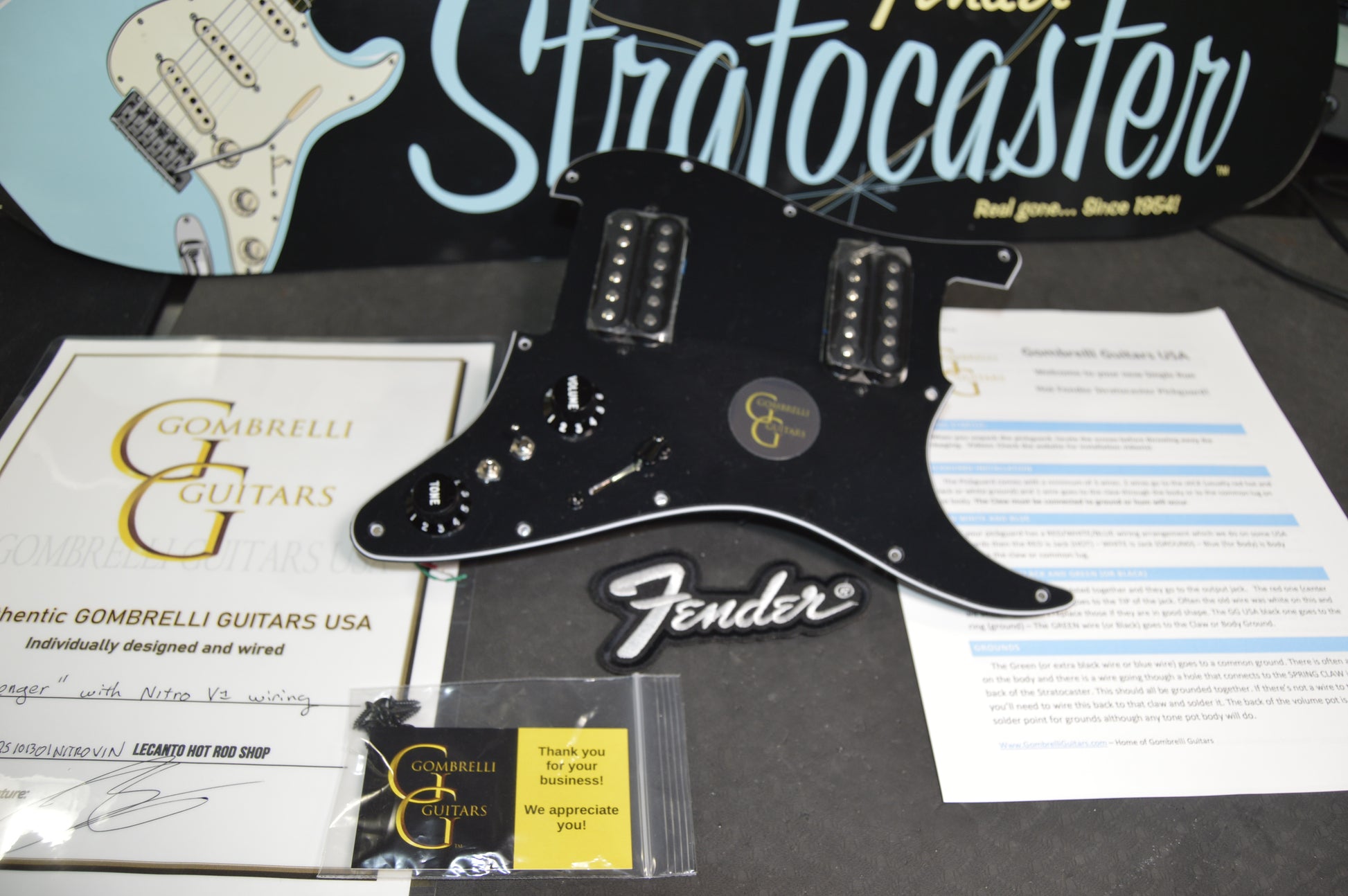

Functional summary: This is an exclusive to Gombrelli Guitars USA. It is a Hot Wired HH Stratocaster Pickguard loaded with Fender SELECT Humbucker Pickups (NOS) in an HSS Configuration. It is a 2 High Quality switch design with a Dual Humbucker Tap and a NITRO switch. In stock mode the switching is like a default Strat. This model also employs a 3 way Switch. Unique Layout of 1 volume, 1 tone and 2 switches in line in place of tone 1. See the VIDEO! This bad boy is fun!

Description

• Genuine RARE FENDER SELECT series Humbucking pickups
• NITRO SERIES V1™ wiring
• All Black Design
• Black 3 Ply Pickguard (It has plastic on it so the pick marks are from Strat testing and the demo and are on the plastic film - we had too much fun playing with it)
• Black Screws
• Comes with Gombrelli Guitars documentation
• Includes Laminated Certificate of Authenticity
• CTS Volume Vintage Brass Shaft
• CTS Tone 1 Vintage Brass Shaft
• .022 uf Orange Drop Cap for Master Tone
• 2 Hi Quality Salecom switches for a solid feel
• Oak-Grigsby 3 way switch (with center in parallel)
• Dual Humbucker Splitter Switch (top switch)
• NITRO Switch (bottom switch)
• Includes installation and how to use support
• See pickguard picture for measurements

Stock (Switches Off) - Switch toward pots

•         1. Bridge
•         4. Bridge//Neck
•         5. Neck

Dual Splitter

•  1 Bridge Split
•  2. Bridge Split//Neck Split
•  3. Neck Split

NITRO V1 Switching - Designed to work with the Dual splitter

• 1. Neck + Bridge (Split Tone)
• 2. Bridge
• 3. Neck + Bridge (All Tone)
